Product Description:

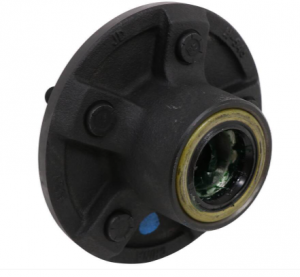

3,500lbs. Axle Idler Hub Kit, 5 on 4.5 Bolt Pattern, (H84545BX)

  • Idler hubs kit fits 3,500-lb axles with #84 spindles
  • 3,500 lbs. trailer axle
  • Bolt pattern: 5 on 4.5″ bearing ,races and 1/2″-20 studs installed
  • Kits Includes:
    • 1 x L68149 inner cone bearing
    • 1 x L68111 inner race
    • 1 x L44649 outer cone bearings
    • 1 x L44610  inner race
    • 1 x Grease seal 58846
    • 1 x E Z lube grease caps with rubber plug
    • 5 X cone wheel nuts 1/2″-20 thread
  • Ref part #. 008-248-05, 84545

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Even
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2″ from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Odd
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2″ measured to a point halfway between the opposite bolt holes.)
