Deutsche Hydrapro Alpha G-1000 (1000psi) Electric/Hydraulic Brake Actuator (G1000)


No reviews yet.

$769.95

Item ID: 5811 | FREE shipping


  • Tested and proven to be the fastest responding EOH actuator on the market!!
  • Application: Drum brakes for single and tandem axle trailers
  • Designed For Axles Less Than 8,000lb.
  • DOT Compliant
  • Dot 4 Brake Fluid
  • Power: 12V DC (min 30 amp feed)
See more product details

Product Description:

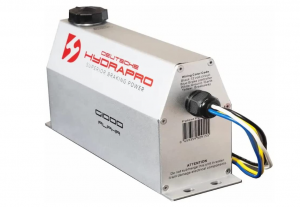

Hydrapro Alpha 1000psi Electric/Hydraulic Brake Actuator, (G1000)

The Deutsche Hydrapro brake actuator is beautifully designed. It is made in Australia with a high level of quality in mind, which is what you need for harsh conditions. The Hydrapro electric over hydraulic brake actuator’s quality and simplicity gives you the necessary reliability required for a trailer braking system. It has a superior response time that delivers shorter stopping distances, which provides the driver with confidence while towing. The size of the unit is compact, one of the smallest on the market, allowing easy installation.

  • 1,ooo PSI Pump for Electric/Hydraulic Drum Brakes – DOT Compliant
  • Best used with DRUM BRAKES (Under 8,000lbs Axle Capacity)
  • High powered DC Motor and quality pump with minimal moving parts for reliability.
  • Independently sealed fluid tank, which provides extra fluid reserves.
  • Weatherproof, anodized alloy case protects components from external elements (such as saltwater, extreme temperatures, and poor road conditions).
  • Robust electronics board that has a protective coating for corrosion resistance.
  • Competitive pricing, making the safer choice of a EOH braking system much easier.
  • Two-year no-hassle manufacturer warranty giving you peace of mind.

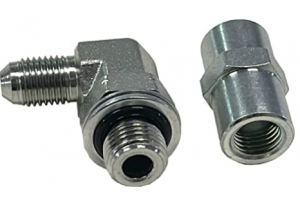

  • The Deutsche Hydrapro comes with a brake line fitting that has 360 degrees of movement, so you can connect your brake line from all mounting positions.



Specifications:

  • Alpha G-1000, electric over hydraulic brake actuator
  • DOT Compliant
  • Trailer Mounted
  • Application: Drum brakes for single and tandem trailers
  • Distance Between Mounting Holes: 10.95” & 1.38” (278mm & 35mm)
  • Mounting Hole Diameter 1.2cm x 0.8cm (12 x 8 mm) slot
  • Hydraulic Port Size: 3/16 inverted flare (standard brake line fitting)
  • Dot 4 Brake Fluid
  • Fluid Capacity of 15.7 oz.
  • Power: 12V DC (min 30 amp feed)
  • Max Current Draw at full pressure approximately 18-24 amps.

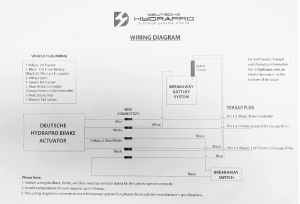

  • Wire Configuration:
    • Black: 12-volt power
    • Blue: brake controller
    • Yellow: breakaway
    • White: ground
  • Wire Gauge Recommendation
    • A minimum of 10 gauge on black and white
    • A minimum 12 gauge on blue and yellow
  • Dimensions:
    • Length: 10” (255mm)
    • Height: 6” (152mm)
    • Width: 3.6” Base / 1.7” Top (90mm Base / 44mm Top)
    • Mounting centers: 10.9” L and 1.6” W (275mm and 40mm)
